Winthrop Center

Aperçu du projet

Winthrop Center est un ajout révolutionnaire à la silhouette de Boston, établissant de nouvelles normes en matière de durabilité et de performance du bâtiment. En tant que plus grande structure certifiée Passive House au monde, ce immeuble de grande hauteur présente une efficacité énergétique de pointe et des commodités de bureau et de style de vie de prochaine génération. Winthrop Center apporte également des avantages économiques et communautaires durables. Son Connector Grand Hall et son parc adjacent offrent un espace public pour les repas, les concerts et les divertissements, ce qui l’établit encore plus comme un centre dynamique dans la ville.

Elevate played a key role in bringing Winthrop Center to life, serving as part of its groundbreaking model of sustainability. This high-rise in Boston sets new standards for energy efficiency and performance, and Elevate’s innovative roofing and insulation solutions were integral to achieving that vision. By incorporating UltraPly TPO SA membrane and next-generation ISOGARD polyiso insulation, Elevate helped create a roofing system that enhances durability and efficiency while supporting the building’s ambitious sustainability goals.

Colby Baker, Project Manager at Titan Roofing, the installing contractor, highlighted the complexity of the installation. “This job was unique in that it was a high-rise in Boston, which is unusual” he says. “At 53 stories tall, it was a first for me. This project used Elevate ISOGARD polyiso insulation, HD Composite Board, and 60-mil TPO SA. We installed the Elevate system on multiple levels, including the second, third, and 53rd floors, as well as the penthouse and its walls.”

IMAGES DU PROJET

DÉFIS D’INSTALLATION

Originally developed in 2017 by internationally recognized developer Millennium Partners, Winthrop Center was designed to redefine building performance and energy conservation. With 70% of CO₂ emissions in the building sector stemming from operations like heating and cooling, the project aimed to implement solutions that enhance sustainability and energy efficiency.

To help achieve this vision, Millennium Partners collaborated with a team of MIT professors led by John E. Fernández, Director of MIT’s Environmental Solutions Initiative. Their design focused on promoting health and wellness, enhancing occupant happiness and productivity, and minimizing environmental impact. Fernández played a key role in shaping the building’s sustainable design, ensuring that Winthrop Center would serve as a global benchmark for energy-efficient development.

SOLUTION DE SYSTÈME DE TOITURE

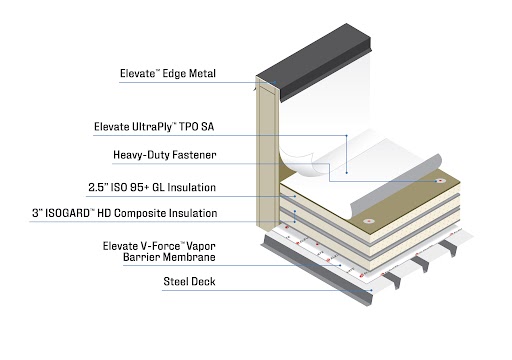

To ensure the highest energy efficiency and sustainability for the project, Millennium Partners turned to Elevate™ roofing systems, combining innovative insulation and membrane technologies. The selected roofing system was designed not only to provide superior thermal performance but also to stand up to the harsh elements and contribute to long-term energy savings. The solution incorporated Elevate ISOGARD™ polyiso insulation, UltraPly™ TPO SA membrane, and Elevate Edge Metal to create a durable, energy-efficient roof system.

ISOGARD Polyiso Insulation

Elevate ISOGARD polyiso insulation was chosen for its exceptional thermal efficiency, offering up to 40% better performance in cold temperatures compared to other roofing insulation brands*. Typically when the temperature drops, the thermal performance of polyiso insulation decreases. ISOGARD, however, is the only polyiso formulation that becomes more effective as the temperature gets colder.

This insulation solution is crucial for helping to reduce heating and cooling costs, maintaining comfortable indoor temperatures, and improving overall energy efficiency for the building. ISOGARD's high R-value per inch makes it one of the most efficient insulation materials available, contributing to a significant reduction in the building’s energy consumption.

Elevate UltraPly TPO SA

Elevate UltraPly TPO SA roofing membrane was selected for its combination of durability, energy efficiency, and environmental benefits. This self-adhering membrane offers a high level of solar reflectivity, UV resistance, and moisture protection, which helps to maintain a cooler building interior. The reflective surface reduces heat absorption, lowering cooling costs and minimizing the need for excessive air conditioning. TPO SA installs up to 4x faster than fully adhered applications, helping to save time and labor on the jobsite**.

In addition to its energy-saving features, UltraPly TPO SA is an environmentally friendly option. The membrane contains zero volatile organic compounds (VOCs) and does not contain chlorinated or halogenated components, making it an ideal choice for sustainable projects. Beyond sustainability, this membrane delivers long-term performance and reliability, helping to extend the lifespan of the roof.

Elevate Edge Metal

To complete the roofing system, Elevate Edge Metal was used to provide enhanced durability and a long-lasting, sleek finish. This product was specifically chosen for its strength, ensuring the roof's edge remains protected against wear and tear from environmental factors. Elevate Edge Metal also adds aesthetic appeal, seamlessly integrating with the rest of the roofing system for a polished, professional look.

^{_{* The thermal performance of ISOGARD polyiso insulation is up to 40% better than major competitors when tested by an independent third party in cold temperature 40°F (4°C) applications according to ASTM C1289 standards. The increased R-value per inch means better thermal performance from the same roofing systems using the same amount of insulation compared to leading competitive products on the market today}}

^{_{* Based on testing conducted by a third-party in 2017 using UltraPly™ TPO SA versus standard adhered TPO. Les délais d’application varient selon les paramètres et les facteurs environnementaux; les résultats réels varieront.}}
